B & E Machine Company, Inc.

Equipment

Home
Company Information
Contact Us
Products & Services
Equipment
Gearboxes

B&E Machine has the right process tool for the right job.  Our fine line of Computer Numerical Control Lathes allows precision operational cuts to be performed with repeatable results, time after time.  Our lathes utilize the new OSP7000L-G CNC controller that is "hard-wired" to the cutting hardware.  The LH35-N combines the delicate control and accuracies of CNC with a heavy duty clamping hydraulic system to produce rock-steady cuts under full power.  Tolerances from 0.0005 in. and shaft work up to 2640 lbs. are possible with our machines.  We can machine all types of materials, from steel and brass, to nylon.

CNC Flat Bed Turning

Okuma LH-35N 7000 OSP
  • Swing Over Bed 24"
  • Swing Over Cross Slide 13-3/4"
  • Center Distance 118"
  • Chuck Size 15"

Okuma LH-35N 3000 OSP
  • Swing Over Bed 24"
  • Swing Over Cross Slide 13-3/4"
  • Center Distance 59"
  • Chuck Size 15"

Okuma LS-N Big 10 2200 OSP

  • Swing Over Bed 21"
  • Swing Over Cross Slide 10"
  • Center Distance 40"
  • Chuck Size 12"

CNC Slant Bed Turning

Okuma LC-40 3000 OSP

  • Swing Over Bed 23-5/8"
  • Maximum Turning Diameter 21-5/8"
  • Maximum Turning Length 15"
  • Maximum Boring Depth 7-1/2"

CNC Vertical Milling

Okuma MC4VA 5000 OSP

  •     Travel:  X-25.59"  Y-16.14"  Z-17.72"
  •     Table Size: 39.37" x 20.08"
  •      Effective Table Size: 39.37"x16.14"
  •      Load Capacity: 1,100 Pounds

Engine Lathe Turning

Monarch 18" CBB

  • Maximum Swing 24"
  • Swing Over, Cross Slide 16-1/2"
  • Center Distance 168"

Tarnow 48 X 2500

  • Maximum Swing 21"
  • Swing Over Cross Slide 14"
  • Center Distance 100"

Monarch 16"

  • Maximum Swing 18-1/2"
  • Swing Over Cross Slide 10-1/2"
  • Center Distance 78"

Lodge & Shipley 16"

  • Maximum Swing 18"
  • Swing Over Cross Slide 10"
  • Center Distance 58"

Cincinnati Tray Top

  • Maximum Swing 15"
  • Swing Over Cross Slide 9"
  • Center Distance 54"

Webb

  • Maximum Swing 17"
  • Swing Over Cross Slide 9-1/2"
  • Center Distance 40"

Monarch 13"

  • Maximum Swing 15-1/2"
  • Swing Over Cross Slide 12"
  • Length Chuck to Saddle 40"

Turret Lathe

J&L Saddle Type

  • Maximum Swing 19"
  • Swing Over Cross Slide 12"
  • Length Chuck to Saddle 40"

Vertical Milling

Cincinnati No. 5

  • Table Size:  X-94"   Y-20"
  • Travel:  X-50"  Y-14"   Z-16"
  • Head Travel:  6"
  • Maximum Under Spindle: 18"

Milwaukee Model K No. 2

  • Table Size:  X 56"  Y 12"
  • Table Travel:  X28"  Y 10"  Z 12"
  • Head Travel:  6"

Horizontal Boring Mill

Collet

  • Table Size: 36" x 45"
  • Travels: X-60"  Y-30" Z-30"
  • Rotary Table
  • Facing Chuck
  • Quill Travel 18"

Vertical Boring

Bullard Vertical Turret Lathe

  • Chuck Size: 34"
  • Maximum Swing: 38"
  • Maximum Under Head: 24"

Drills

Western Radial

  • Z Travel: 40"
  • Arm Travel: 44"
  • Quill Travel: 12"
  • Maximum Under Spindle: 60"

Chicago Power Tools

  • 16" Drill Press

Craftsman

  • 15" Drill Press

Key Seater

D.C. Morrison

  • 1-1/2" Wide Maximum Key Width
  • 9" Maximum Stroke Length
  • Table Size: 24" x 27"

Saws

DoAll 12" Horizontal

Kalamazoo 9" Horizontal

DoAll 9" x 15" Contour

Grinders

Brown & Sharpe No. 2 Cylindrical

Herald Rotary Surface

  • 13-1/2" Magnet
  • 15" Maximum Diameter

Boyar-Schultz 6" x 12" Surface Grinder

Sellers 2-1/2" Cap. Drill Grinder

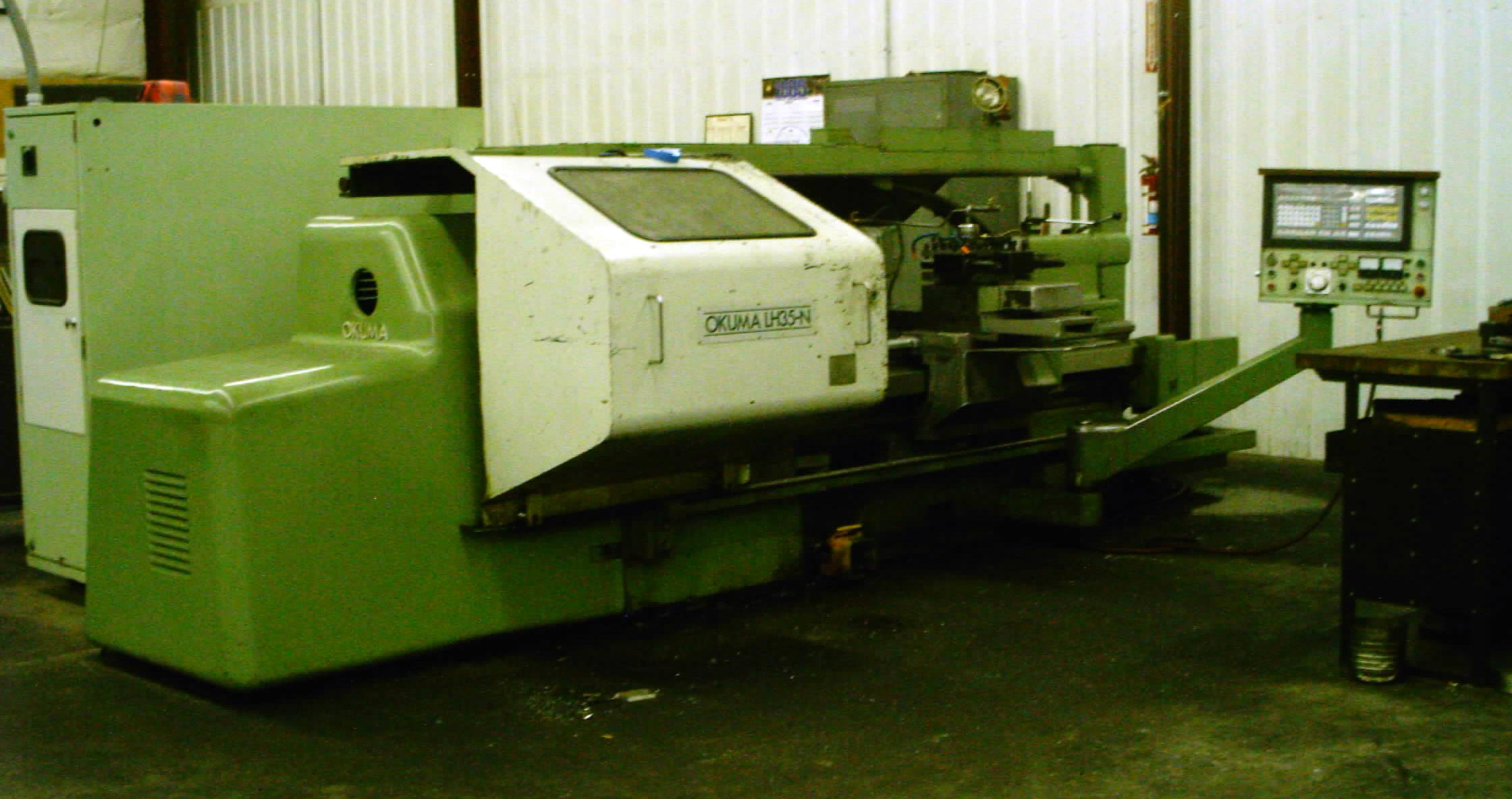

Okuma LH35-N

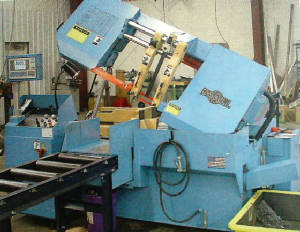

DoAll Series C-4100 Production Power Saw

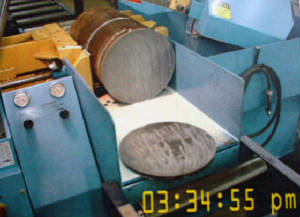

With water-soluble oil cooling the blade, the saw cuts this steel shaft smoothly, quietly, & cleanly

In just 11 min. this 12-1/2" piece of 1045 hi carbon steel was cut accurately,with a superior finish

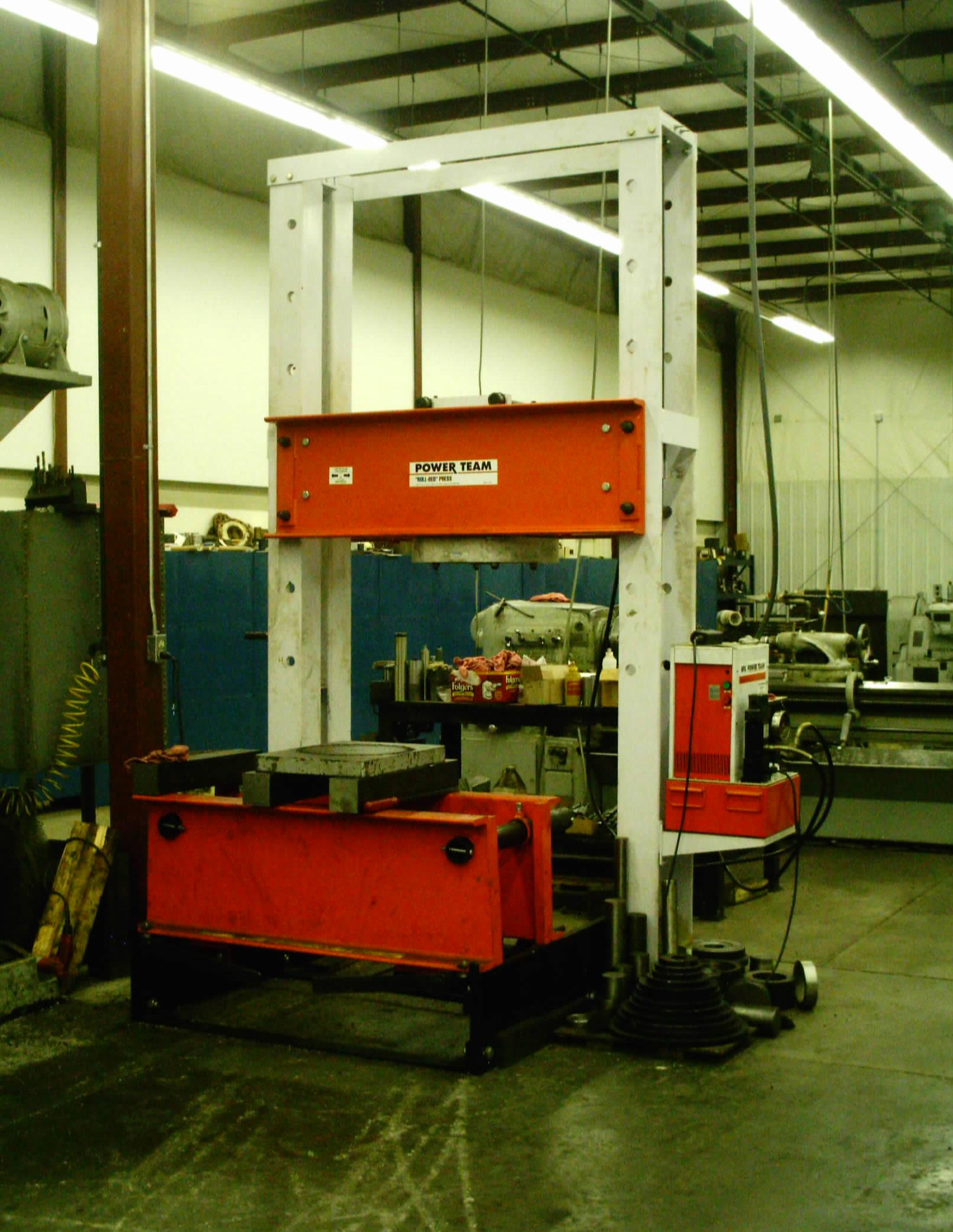

200 Ton Press

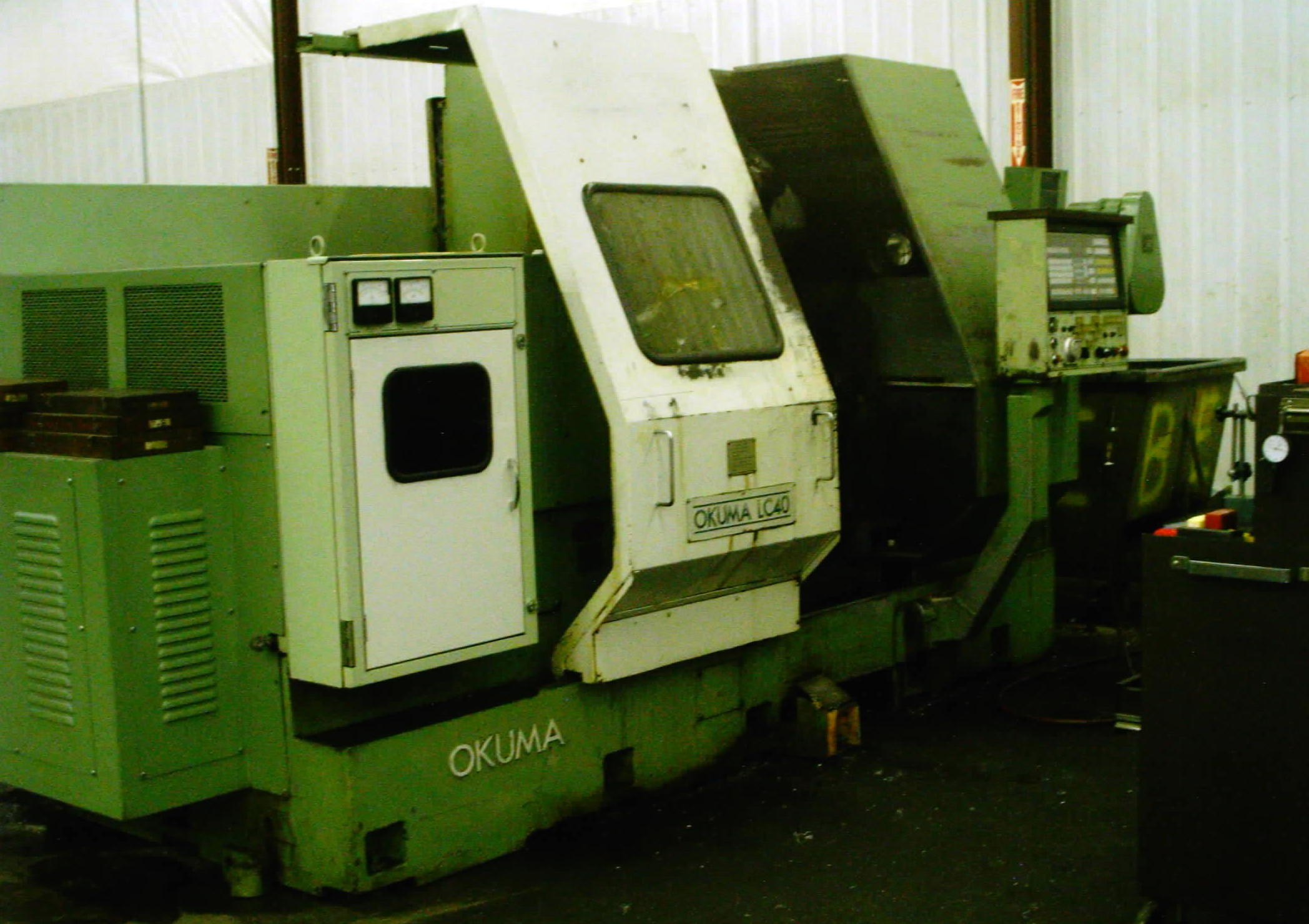

Okuma LC-40

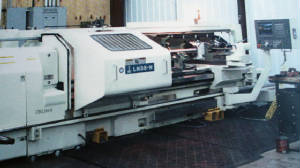

Okuma LH-35

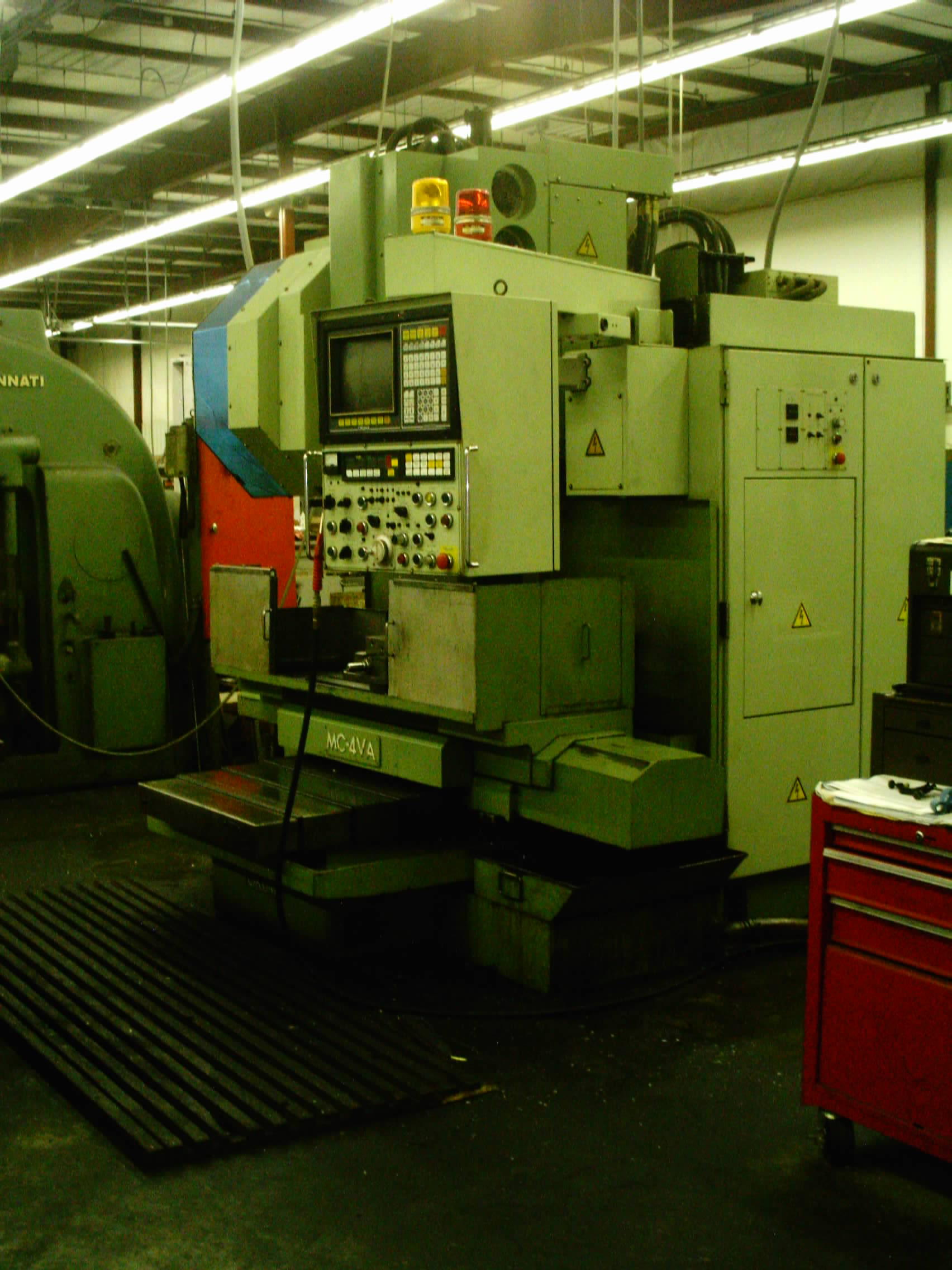

Okuma MC4-VA Vertical CNC


B&E Machine Company Inc.
1944 15th Avenue South
Clinton, IA 52732

563-242-2192
